Elmod

Electricity Market Model

Model purpose	Main characteristics
Analysis of market design issues Influence of renewable energy sources (RES) on the European transmission grid Congestion management Load flow analysis	Bottom-up electricity market model DC load flow based transmission grid model Temporal resolution up to 72 h (representative hours) Scenario-based series of wind and PV feed-in for characteristic hours

Exemplary results

Congestion Management in Germany -
The Impact of Renewable Generation on Congestion Management Costs (Kunz 2011)

• National congestion management is not sufficient to ease all network congestion
• Even topology optimisation cannot completely eliminate the need for re-dispatching power plants
• Even topology optimisation cannot completely eliminate the need for re-dispatching power plants

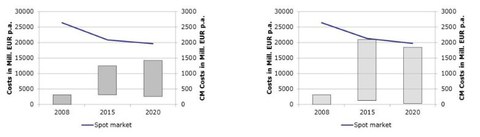

• Integration of higher RES shares and proposed power plant investments reduce system dispatch costs, but increase the need for congestion management
• Change of market design and congestion management regime results in benefits and reduces the need for transmission expansion

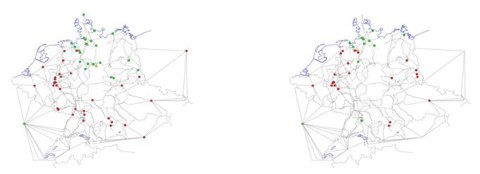

Without grid extension and topology optimizing

With grid extension

Without grid extension

With grid extension and nuclear phase-out

Exemplary Results

Kunz, Friedrich (2011): "Congestion Management in Germany-The Impact of Renewable Generation on Congestion Management Costs.“, appears in the Energy Journal or download as Working Paper (WP-EM-46) at www.ee2.biz.

Leuthold, Florian; Weigt, Hannes; Hirschhausen, Christian: A Large-Scale Spatial Optimization Model of the European Electricity Market, Journal of Network and Spatial Economics, 2010.

Weigt, Hannes; Jeske, Till; Leuthold, Florian; von Hirschhausen, Christian: Take the long way down - Integration of large-scale North Sea wind using HVDC transmission, Energy Policy, Vol. 38, Issue 7, July 2010, Pages 3164-3173.

You can dowload a short description of Elmod here.

description of Elmod
