Quasistatic internal gear test rig

Full title:

 Quasistatic internal gear test rig

Contacts:

 Dr.-Ing. Thomas Rosenlöcher
Dr.-Ing. Stefan Schumann
Dipl.-Ing. (FH) Robert Schröder
Testing machine:     Quasistatic planetary gear torque test rig
Testing capabilities:

  • Planetary gear test rig with a static load unit to perform stress measurement

  • Analysis of the influence of the design on the component stresses (connecting stiffness and influence of asymmetric screw connection at the ring gear, stiffness of the planet carrier)

  • Measurement of stresses using strain gauges in the tooth root, front side and/or at the ring gear

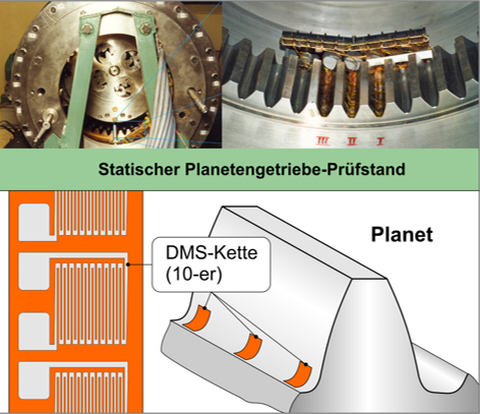

Quasi-static internal gear test rig © IMM
