WIR! - DMPL - Boniturschwarm: Development of a Method for Using Commercially Available Drones for Field Assessment in a Swarm
Table of contents
Produktivitätssteigerung durch zeitgleichen Einsatz mehrerer UAVs
Brief Description
In modern, forward-looking agriculture, data on farmland is becoming increasingly important. This information is increasingly being collected using remote sensing methods and provides added value for agricultural operations. One method of remote sensing involves the use of UAVs (unmanned aerial vehicles), which—for example—can use multispectral cameras to gather information about crop condition and nutrient status. This assessment data is used, for example, to apply pesticides or fertilizers in a needs-based, resource-efficient manner. Furthermore, the collected information can be used to validate satellite data, estimate yields, and assess weed infestation.
Currently, this type of data collection typically involves expensive specialized equipment (UAVs with appropriate sensors) and a one-to-one ratio of pilot to UAV, resulting in significant financial and time costs. This creates a trade-off between the ground resolution required for tasks such as individual plant detection and the area coverage of the UAVs. The project aims to address these challenges.
Objectives

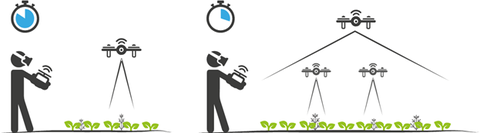

To minimize equipment and labor costs and increase the efficiency of UAV-based crop assessment, several commercially available, low-cost UAVs are to be grouped into an assessment swarm and monitored by a single UAV pilot. This approach offers advantageous opportunities for scaling up operational capacity or dividing tasks. The goal is to increase the effectiveness of crop assessment while also addressing the problem of limited flight time for a single UAV.
Methods
To implement the project, three key areas of focus are being addressed in collaboration with the project partner EXAgT GmbH Büro für Präzise Agronomie. The Chair of Agricultural Systems Technology is developing planning software for the deployment of multiple UAVs.
EXAgT GmbH simplifies and accelerates the process of photogrammetric analysis of the collected data by selecting and customizing suitable photogrammetric software to make the data set for crop assessment available as soon as possible after the flight.
The application and testing of the system, along with the practical exchange of experiences with farmers, constitutes the third strand of work in the project. To this end, individual flights are conducted and evaluated to determine and define the requirements of the soil evaluation swarm. The exchange with practical users from the agricultural sector provides important feedback for the development work, ensuring the method is implemented effectively. In addition, farmers are familiarized with the system, with the aim of facilitating a rapid transition to practical use after the project concludes.
Results
If the project progresses successfully, it is expected that by the end of the project, planning software will be available that enables the planning of flight routes for multiple UAVs operating in a swarm. If necessary, the UAV pilot can evaluate the acquired image data in the field using photogrammetry software in a quick preview, and, if appropriate, plan additional flights based on the information.
Conclusion
The system helps to accelerate field assessments and make them more cost-effective through the use of multiple UAVs operating in a swarm. This can provide more farmers with valuable information about their agricultural land, enabling them, for example, to implement measures tailored to specific needs and sub-plots.
Project Funding
The project is funded by the Federal Ministry of Research, Technology and Space as part of the “WIR!—Change Through Innovation in the Region” funding program under grant number 03WIR7507B.
Project Duration
April 1, 2024, through March 31, 2027
Project Partners
