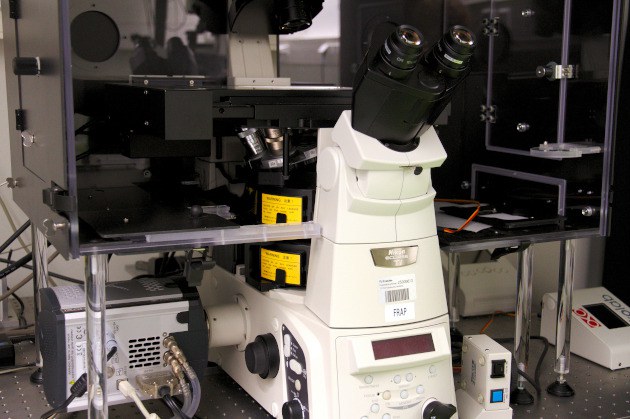

Nikon Ti-E TIRF/FRAP

Imaging Modes:

• wide-field (epi, dark-field, phase contrast)
• TIRF
• FRAP

High-end EMCCD camera:

• Andor iXON Ultra 897

Objectives:

• 100x/1.49 SR HP Apo, Oil, DIC
• 60x/1.49 Apochromat, Oil, DIC
• 60x/1.27 Plan Apo IR, Water, DIC
• 40x/0.95 CFI PlanApo Lambda, Air, DIC
• 10x/0.3 Plan Fluor, Air, DIC

Fluorescence Excitation:

• Laser lines: 405, 488, 561, and 647 nm
• LEDs: 395, 440, 470, 510, 550, 575, and 640 nm

Additional Equipment:

• "Perfect Focus System" auto-focus
• Objective heater
• stage heater/cooler
